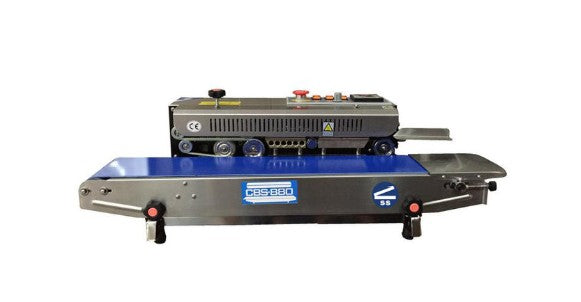

CBS-880I Horizontal Band Sealer CBS-880I Horizontal Band Sealer

5 in stock

$1,350.00

CBS-Series | SKU: CBS-880I Suitable for sealing all types of plastic materials and bags.  One of our most popular band sealers...

Add to Wishlist

  • CBS-Series | SKU: CBS-880I

    Suitable for sealing all types of plastic materials and bags.  One of our most popular band sealers with a great value propositions.  Can seal 20-30 6" wide poly bags per minute.

    FEATURES:

    • Durable stainless steel

    • Easy to operate - minimal operator training

    • Fast warm up time

    • Seals any thermoplastic material including PE, PP, and laminates

    • Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality

    • Motorized rubber conveyor with speed control

    • Knurled pressure wheel rolls with variable pressure adjustment

    • One pair each of cooling and heating blocks

    • Sealing method - constant direct heat

    • Unit feeds right to left

    • Equipped with an emergency stop button

    • Includes wheel to emboss on seal line without ink

    • Can easily be converted to a vertical configuration with an optional converting kit

    • Manufacturer’s spare parts kit include:  PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)

    OPTIONAL FEATURES:

    • Smooth or serrated sesal

    • Stainless steel stand for horizontal units only

    • 15mm or 30mm seal width

    • Digital counter to keep track of sealed packages

Power

110V / 60Hz

Motor Power

50W / 300 x 2

Sealing Speed

0-630"/min

Seal Width

10MM

Sealing Power

300 x 2

Temperature Range

0-300°C

Conveyor Size

Under 22-lbs

Single Conveyor Load

2.2lbs

Max. Conveyor Load

6.6lbs

Dimensions

33" x 15" x 13"
Weight (lbs)

66







  • CBS-Series | SKU: CBS-880I

    Suitable for sealing all types of plastic materials and bags.  One of our most popular band sealers with a great value propositions.  Can seal 20-30 6" wide poly bags per minute.

    FEATURES:

    • Durable stainless steel

    • Easy to operate - minimal operator training

    • Fast warm up time

    • Seals any thermoplastic material including PE, PP, and laminates

    • Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality

    • Motorized rubber conveyor with speed control

    • Knurled pressure wheel rolls with variable pressure adjustment

    • One pair each of cooling and heating blocks

    • Sealing method - constant direct heat

    • Unit feeds right to left

    • Equipped with an emergency stop button

    • Includes wheel to emboss on seal line without ink

    • Can easily be converted to a vertical configuration with an optional converting kit

    • Manufacturer’s spare parts kit include:  PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)

    OPTIONAL FEATURES:

    • Smooth or serrated sesal

    • Stainless steel stand for horizontal units only

    • 15mm or 30mm seal width

    • Digital counter to keep track of sealed packages

Power

110V / 60Hz

Motor Power

50W / 300 x 2

Sealing Speed

0-630"/min

Seal Width

10MM

Sealing Power

300 x 2

Temperature Range

0-300°C

Conveyor Size

Under 22-lbs

Single Conveyor Load

2.2lbs

Max. Conveyor Load

6.6lbs

Dimensions

33" x 15" x 13"
Weight (lbs)

66
